Two-bedroom rectangle with a lower kitchen–living zone

Shared by Lodnor plan previews

Published

Comments

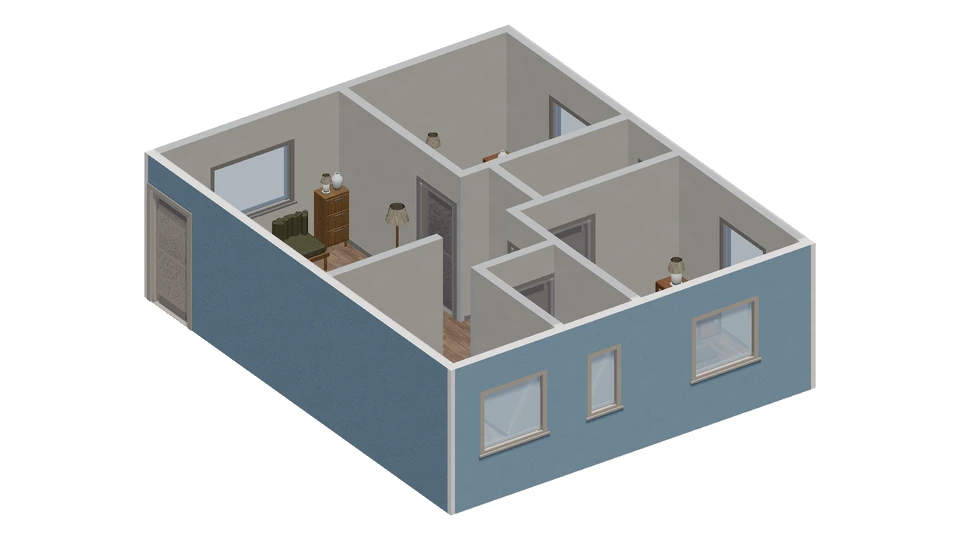

Two-bedroom rectangle with a lower kitchen–living zone conceptual 3D model

Loading the 3D view. The published poster remains visible.

Conceptual model only. Not a survey or construction document.

Measurements

All measurements are approximate.

Overall width
≈ 8.5 m
Overall depth
≈ 7.0 m
Model height
≈ 3.0 m
Spaces
7

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

The bedrooms occupy the upper corners of the plan, separated by a narrow bathroom bay. Below them, the living room and kitchen connect around a partial wall, with the second bathroom set between the kitchen and one bedroom. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 7131 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

  • Wall stucco blue

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
