Two-bedroom rectangle with unequal bedroom bays

Shared by Lodnor plan previews

Published

Comments

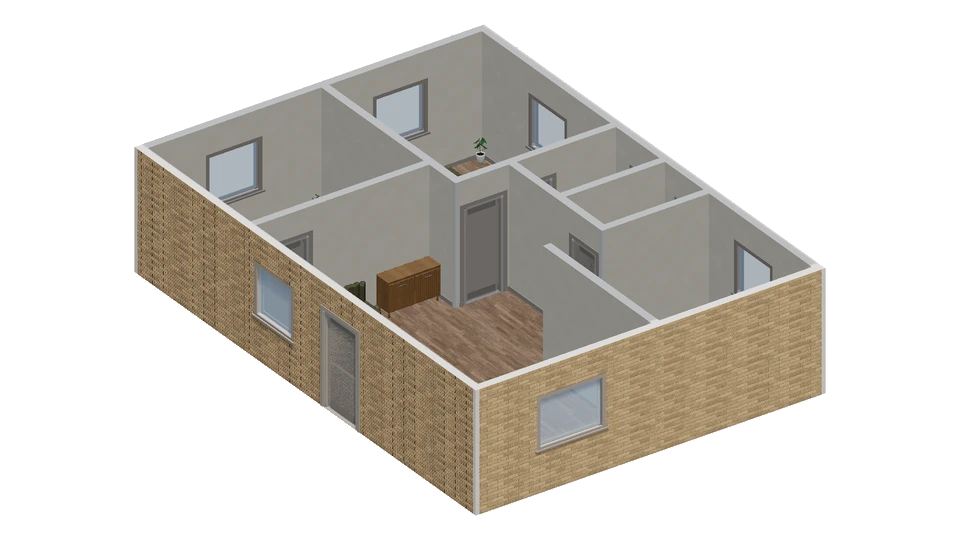

Two-bedroom rectangle with unequal bedroom bays conceptual 3D model

Loading the 3D view. The published poster remains visible.

Conceptual model only. Not a survey or construction document.

Measurements

All measurements are approximate.

Overall width
≈ 10.9 m
Overall depth
≈ 7.8 m
Model height
≈ 3.0 m
Spaces
6

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

Two bedrooms line one side of the plan, with the upper room extending farther toward the central circulation area. The living room opens toward a kitchen bay on the other side, and two bathrooms sit together beside the larger bedroom footprint. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 16647 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

  • Wall brick buff

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
