Short cross-hall between two bedrooms and a kitchen bay

Shared by Lodnor plan previews

Published

Comments

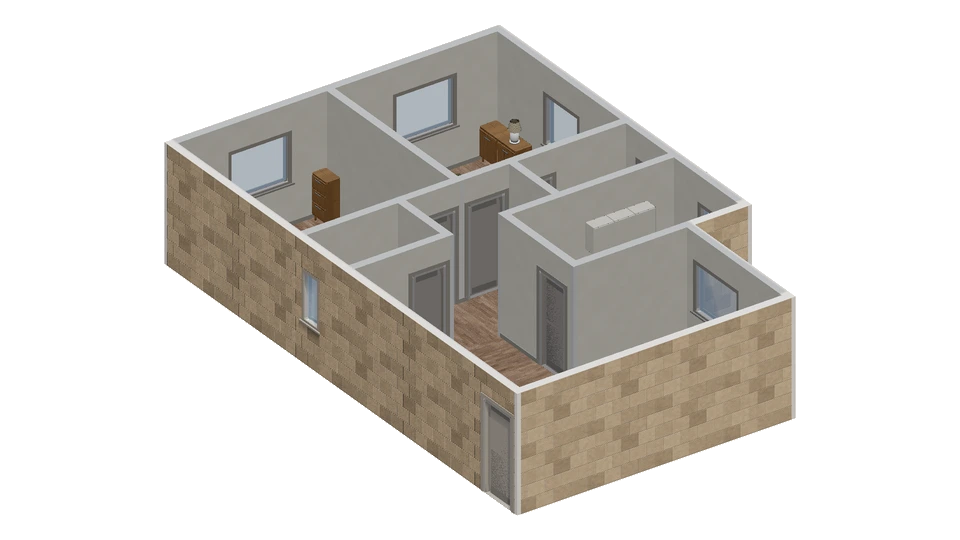

Short cross-hall between two bedrooms and a kitchen bay conceptual 3D model

Loading the 3D view. The published poster remains visible.

Conceptual model only. Not a survey or construction document.

Measurements

All measurements are approximate.

Overall width
≈ 11.7 m
Overall depth
≈ 7.7 m
Model height
≈ 3.0 m
Spaces
7

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

A short hall joins two stacked bedrooms to the living area along the opposite side. The kitchen occupies a deep bay above the living room, with one bathroom beside it and another in a narrow lower bay. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 2131 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

  • Wall stone sandstone

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
