Two bedrooms over a broad living zone and corner kitchen

Shared by Lodnor plan previews

Published

Comments

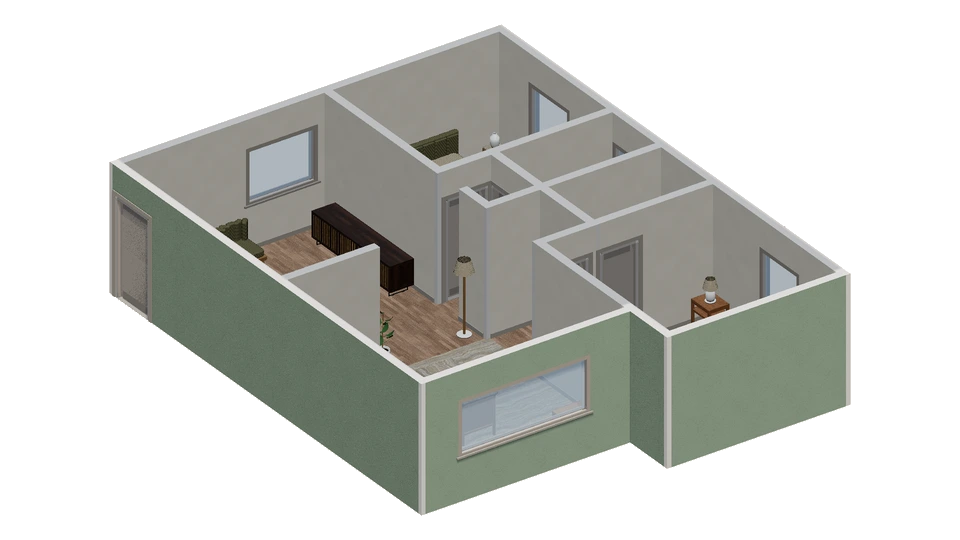

Two bedrooms over a broad living zone and corner kitchen conceptual 3D model

Loading the 3D view. The published poster remains visible.

Conceptual model only. Not a survey or construction document.

Measurements

All measurements are approximate.

Overall width
≈ 10.7 m
Overall depth
≈ 8.4 m
Model height
≈ 3.0 m
Spaces
8

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

Two bedrooms form the upper corners, with paired bathrooms and small connecting spaces between them. The living room occupies most of the lower band and opens around a partial wall into the corner kitchen. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 198 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

  • Wall stucco sage

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
