Two bedrooms around a broad central living area
Loading the 3D view. The published poster remains visible.
Measurements
All measurements are approximate.
- Overall width
- ≈ 9.7 m
- Overall depth
- ≈ 9.0 m
- Model height
- ≈ 3.0 m
- Spaces
- 8
Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.
Each space
Space measurements will appear after the 3D model loads, when its floor geometry supports them.
Model notes

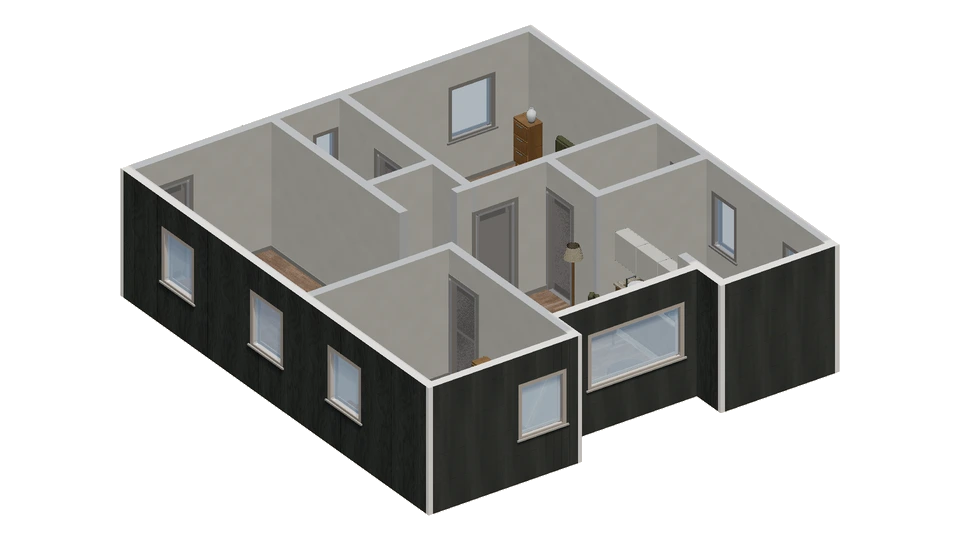

The living room connects openly to the kitchen, with bedrooms at opposite corners and two bathrooms beside the upper bedroom. An unlabeled lower area opens into the living room, while a small alcove sits beside the narrow side bathroom. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 2672 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.
Finishes
- Wall timber charcoal
About this model
This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
