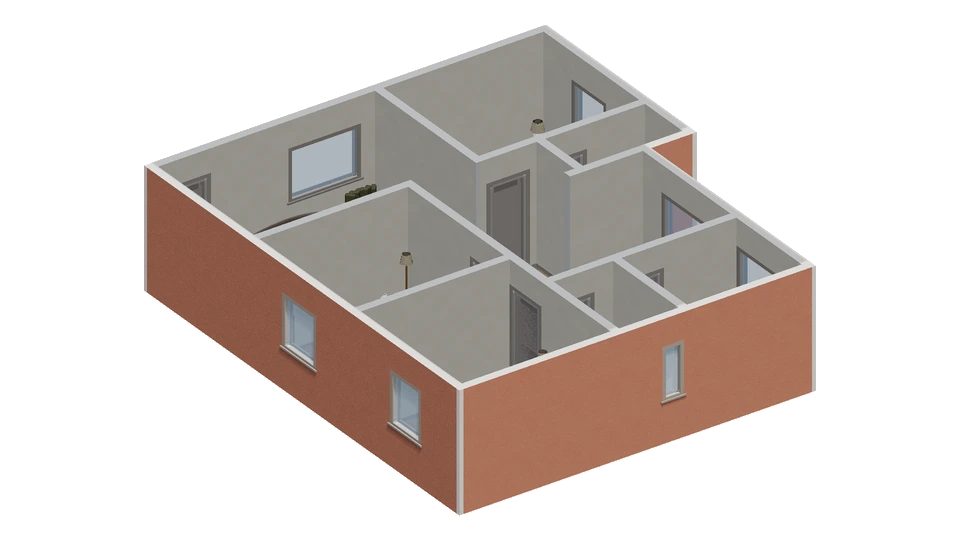

Three bedrooms off an L-shaped living and entry area
Loading the 3D view. The published poster remains visible.
Measurements
All measurements are approximate.
- Overall width
- ≈ 10.1 m
- Overall depth
- ≈ 9.0 m
- Model height
- ≈ 3.0 m
- Spaces
- 7
Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.
Each space
Space measurements will appear after the 3D model loads, when its floor geometry supports them.
Model notes
The living area turns from the entry-side edge into a central band serving all three bedrooms and the kitchen. One bathroom sits beside the upper bedroom, and another forms a horizontal bay between the kitchen and lower corner bedroom. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 314 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.
Finishes
- Wall stucco clay
About this model
This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
