Three-bedroom rectangle with an unlabeled entry room

Published September 10, 2026

Measurements

All measurements are approximate.

Overall width: ≈ 13.7 m
Overall depth: ≈ 7.2 m
Model height: ≈ 3.0 m
Spaces: 9

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

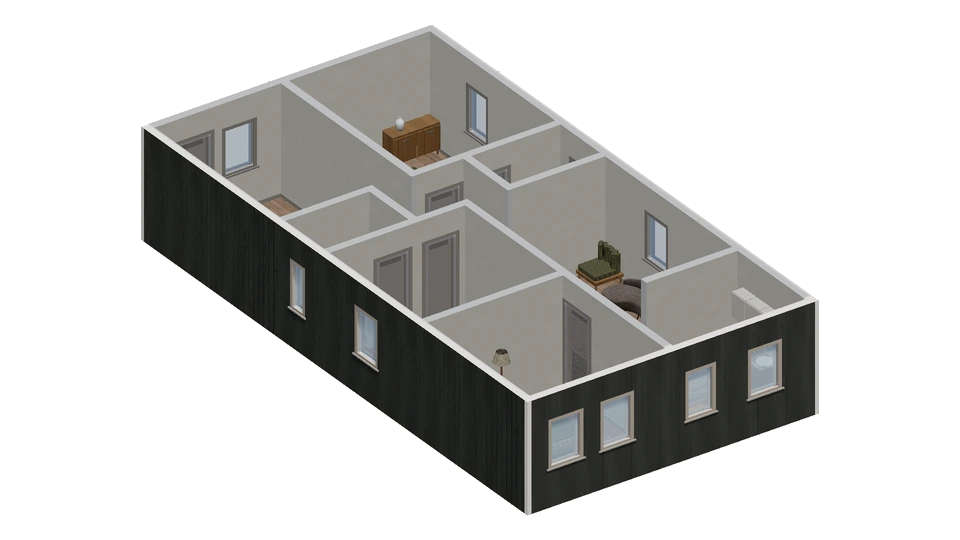

An unlabeled entry-side room opens through a short corridor into the living and kitchen area. Three bedrooms occupy the remaining upper and lower bays, with two bathrooms set beside separate bedrooms. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 11324 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

Wall timber charcoal

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
