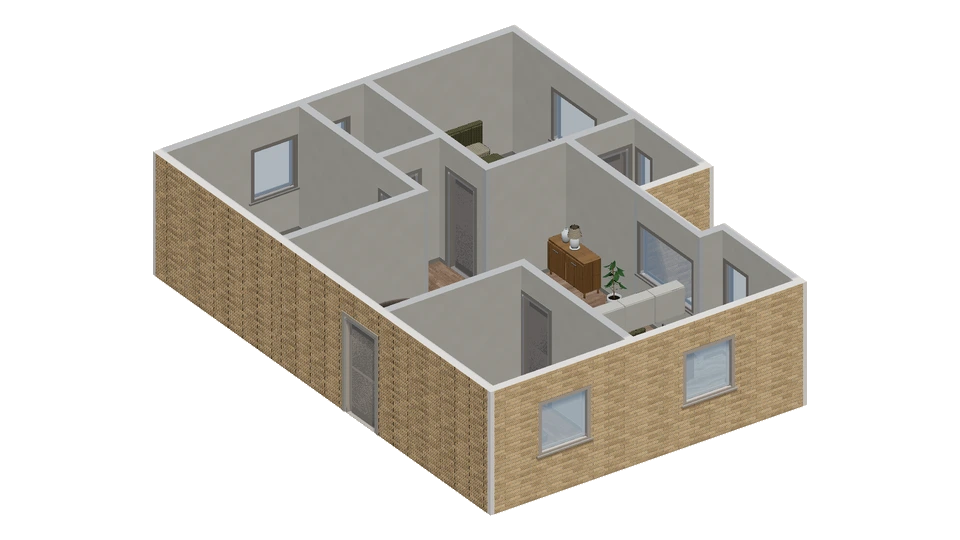

Three-bedroom layout with a wide kitchen–living middle
Loading the 3D view. The published poster remains visible.
Measurements
All measurements are approximate.
- Overall width
- ≈ 11.0 m
- Overall depth
- ≈ 8.2 m
- Model height
- ≈ 3.0 m
- Spaces
- 8
Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.
Each space
Space measurements will appear after the 3D model loads, when its floor geometry supports them.
Model notes
The kitchen opens directly into a broad living area between the three bedrooms. Two bathrooms occupy separate bays beside the upper and lower bedrooms on one side, while a short hall gathers the bedroom doors and joins the living area. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 16898 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.
Finishes
- Wall brick buff
About this model
This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
