To convert a PDF floor plan to a 3D model, select the required pages and crops in the local preparation workspace, preserve readable room boundaries and dimensions, and add drawing context you can verify. The conversion interprets scale from the drawing and that evidence; one reference length is not a guarantee. Check the reported scale status and compare a second independent dimension in the model.
What is inside a PDF floor plan?
A PDF is a container, and two files with the same extension can hold completely different things. The distinction that matters for conversion is drawn geometry against a picture. A plan exported from CAD can retain vector paths and selectable dimension text, depending on its export settings. A scan, or a phone photograph saved as a PDF, is one image inside a page-shaped wrapper. Two checks tell them apart in a few seconds: zoom in hard on a single wall, because drawn lines stay sharp at any magnification and a scan breaks into pixels; then drag the text cursor across a dimension string. If it highlights, the sheet carries text.
Which page do you convert?
Choose the floor-plan pages in the local preparation workspace and crop out cover sheets, site plans and unrelated details. If one physical level spans two sheets, assign both fragments to that floor, then adjust their crop, rotation, scale and placement. Check the preview and match lines before confirming. If one page shows two physical levels, create a separate floor for each and crop its own fragment.
How does the scale get resolved?
A conversion can recover the shape of a plan from the drawing alone. Absolute size is a separate question, and it needs a length that is true in the building. Look for three things, in this order: a dimension string on the longest straight run, a graphic scale bar, and the ratio printed in the title block. The first two are drawn on the sheet, so they shrink with it and survive a reduction from A3 to letter. The ratio is a note about the sheet size the drawing was plotted at, and a printer set to fit the page leaves the note reading 1:100 after the drawing underneath it has moved.

Why did the conversion come back wrong?
A conversion can misread a legible source, and source defects can also make the result unreliable. Compare the same location in the drawing and model before changing the file.
- Page orientation or distortion. Perspective, unequal stretching, and bowed paper can change geometry. Use a square-on scan or an undistorted export when those are present.
- Text too small to read. Labels and dimension strings sized for an A1 print can become unreadable on a page downscaled to letter. Export at the original sheet size instead of shrinking it.
- Layers still in the file. A layer you switched off in your viewer can still travel with the PDF. Flatten to a new file, then look at that file.
- Two plans on one sheet. A key plan, a location diagram or a second unit type gives the conversion two buildings at two scales and no way to tell which one you meant.
- Missing or misplaced openings. Compare the symbol in the source first: it may be faint or ambiguous, or the model may have misread a clear symbol.
What INK TO BRICK does here
You upload one floor plan, as a PDF, PNG, JPEG, SVG, or DXF file of up to 25 MiB. Select PDF pages and crops in the local preparation workspace and group fragments by physical floor. Your plan sets how many floors a home or project can have, and a top-up adds more when you reach the limit; review alignment, elevations and stair connections before confirming the model.
If the hall is 3.2 m long according to a dimension you checked, enter that value rather than an assumed standard size. The progress screen then reports where scale solving landed, as Solving, Resolved, or Not resolved. Read that status, then check a second independent dimension elsewhere in the model.
More on PDFs, scale and exports
The PDF format itself is standardized as ISO 32000-2, the PDF specification, which describes a page rather than a building, so nothing in the file is obliged to know what a wall is. When a dimension string does not highlight, the text may be rasterized or converted to vector outlines; a page where text will not select can still hold vector linework, so look closer before you treat the whole page as a scan.
If you want to pin a number yourself before uploading anything, measuring a floor plan PDF by hand sets out the procedure, and Adobe documents its own measuring tools for PDFs, which have to be calibrated against a known distance before they report anything meaningful.
Converters collect scale evidence in different ways. RoomSketcher’s AI Convert asks you to drag a scale bar along a wall whose real length you already know and type that length in, and its help says the step cannot be skipped. See the RoomSketcher AI Convert help article. Planner 5D’s upload guidance asks for a plan that includes dimensions and says a plan without them cannot be reproduced at the intended size. These are requirements of those workflows. Size the building from printed dimensions, not a guessed length.
What comes back is a conceptual model you explore in the browser, furnish and finish in the editor, and export in 20 formats. Every plan includes SVG and PDF plans, GLB, glTF, OBJ, Collada DAE, STL, 3MF and USDZ models, JSON, CSV and XLSX data, and PNG, JPEG and WebP images. Pro and Team add export controls and the DXF, DWG, SketchUp SKP, IFC and STEP formats. The sample showcases are free; personal projects stay private until their owner publishes. The pricing page states current access.
The whole route from a sheet to a model is described on the floor plan to 3D page. For what a model built from a drawing actually knows about distance, and what it cannot answer, read getting measurements off a plan.
Try one page and check the result
On one floor-plan page, mark the entry, one uncertain opening and two independent dimensioned runs. After conversion, find all four in Plan and 3D. Write the source value beside each model reading; if the two lengths disagree, pause exact-fit decisions and check distortion or local geometry. You are ready to continue when the selected page, room connections and remaining unknowns are clear, even if some dimensions still need a site measurement.

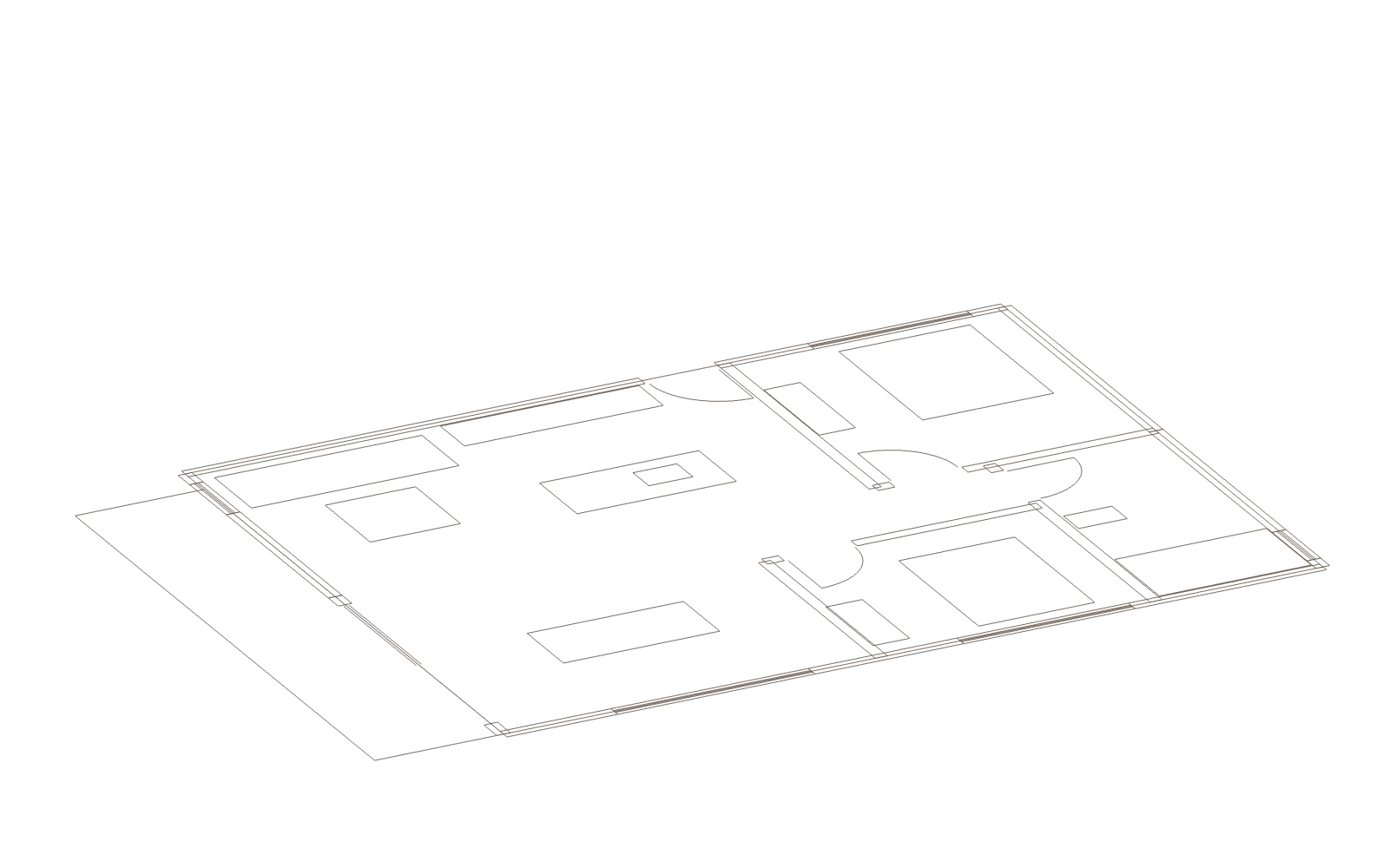

Inspect a reference in 3D
Orbit the model and zoom toward an opening. Which spaces does it connect, and what is hidden from the opposite angle?
