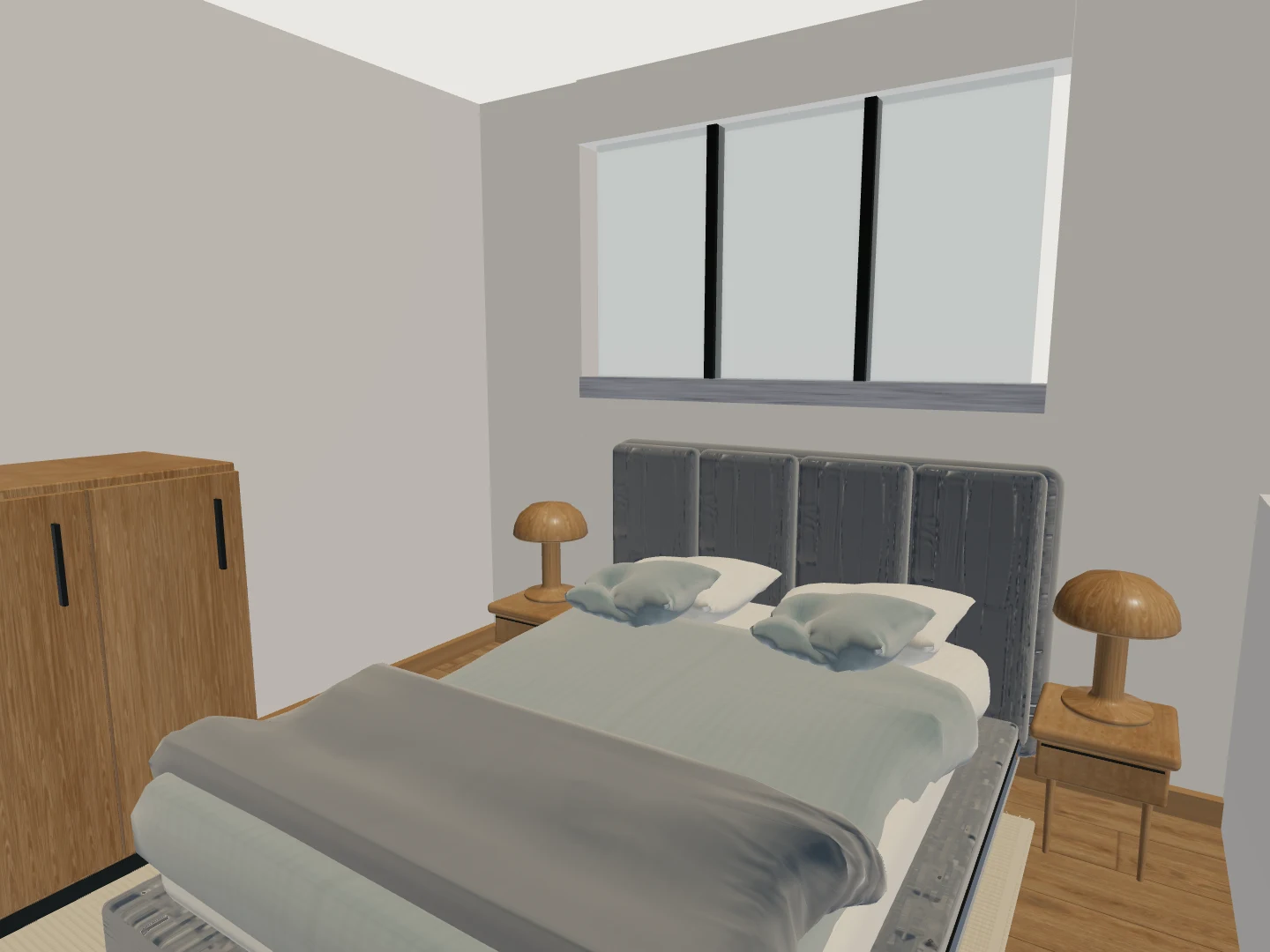

Inspect the bed, window and bedside furniture from inside a bedroom.
Drag the divider to reveal the source 3D view.
Open this model in 3D
What happens when you upload the brochure plan
You create a project with a neutral unit-type name, such as “Two-bedroom A,” and upload one file: the brochure sheet that carries the plan. A published project title is public, so leave buyer names and private addresses out of it. The upload screen takes PDF, PNG, JPEG, SVG, or DXF, up to 25 MiB. Use a clear, uncropped plan with room boundaries and dimensions where available, and upload only a drawing you have permission to use.
A sales brochure is usually a long PDF; choose the page and crop that carry your unit plan in the local preparation workspace. You can arrange several fragments into one physical floor before uploading. A PNG or JPEG of that page also works, as long as it is uncropped and the room boundaries are legible.
Then the plan is converted into a conceptual model. The wait screen reports which processing steps have finished and whether a 3D model was built. Progress does not report time remaining or measurement accuracy. You can close the tab and come back.
When the model is ready it opens in your browser. The viewer gives you model-space area, space count, extent and height estimates. These describe the generated geometry; they do not establish the plan’s real scale. Use a larger screen for precise placement and dimension checks; the sample is available before you start your own project.
What to check against the brochure
The plan in a brochure is a drawing made to sell the condo. The furniture printed on it is part of that drawing, not a measurement of anything you own. Review the model before your reservation or deposit deadline, then check its dimensions against reliable plans. It does not verify the condo.
- Check the reported scale status, then compare two independent dimensions on the brochure plan with the same spans in the model. If they differ, check the source or ask for dimensioned plans before you rely on either number for the real condo size. See getting real measurements off a plan.
- Read the floor area and room count in the viewer, then compare them with the interior area quoted in the brochure. Ask the sales agent how that area was measured and what it includes. The model estimate and the sales figure may describe different boundaries.
- Place a piece from the furniture library in the bedroom and look at it. Each piece carries a catalog width, depth and height, and its footprint drawing is labeled catalog bounds, not a product image. See will a queen bed fit.
- If construction has started, arrange an authorized site measurement through the sales agent or developer. Ask the developer for current dimensioned plans; do not rely on brochure furniture to establish clearances.
Keep the model review focused on questions you can resolve: which unit type the drawing represents, whether the plan is current, what the quoted area includes, and which dimensions need confirmation. For a buyer’s checklist, read buying new construction from a floor plan.
