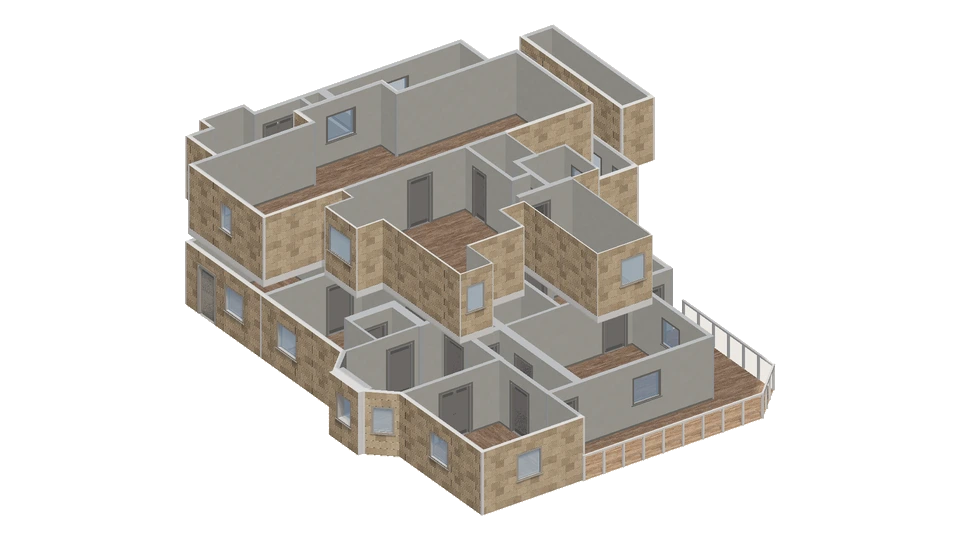

Stiles-Pigg Farmstead

Published September 10, 2026

Measurements

All measurements are approximate.

Overall width: ≈ 26.5 m
Overall depth: ≈ 21.4 m
Model height: ≈ 6.2 m
Spaces: 29

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

2 floors reconstructed from HABS drawings. Historic American Buildings Survey, TX-3382-A. HABS public-domain measured drawings: https://commons.wikimedia.org/wiki/File:First%20Floor%20Plan%20-%20Stiles-Pigg%20Farmstead%2C%20Main%20House%2C%201.7%20miles%20northeast%20of%20the%20intersection%20of%20Bakers%20Branch%20and%20Old%20Maypearl%20Roads%2C%20Waxahachie%2C%20Ellis%20County%2C%20TX%20HABS%20TX-3382-A%20(sheet%201%20of%204).png Production reconstruction, not a survey or construction document. Floor heights estimated; floors aligned automatically; horizontal scale unverified. Stairs and inter-floor routes unconfirmed, including where no stairs are modeled. Decorative finish palette is not evidence of original construction. 3 assembly blockers remain. 0 stair proposals; none confirmed.

Finishes

Wall stone sandstone

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
