Warren Segraves Residence

Published September 10, 2026

Measurements

All measurements are approximate.

Overall width: ≈ 21.9 m
Overall depth: ≈ 15.5 m
Model height: ≈ 6.2 m
Spaces: 27

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

2 floors reconstructed from HABS drawings. Historic American Buildings Survey, AR-53. HABS public-domain measured drawings: https://commons.wikimedia.org/wiki/File:First%20Floor%20Plan%20-%20Warren%20Segraves%20Residence%2C%20217%20Oklahoma%20Way%2C%20Fayetteville%2C%20Washington%20County%2C%20AR%20HABS%20AR-53%20(sheet%203%20of%2016).png Production reconstruction, not a survey or construction document. Floor heights estimated; floors aligned automatically; horizontal scale unverified. Stairs and inter-floor routes unconfirmed, including where no stairs are modeled. Decorative finish palette is not evidence of original construction. 4 assembly blockers remain. 1 stair proposals; none confirmed.

Finishes

Wall stucco blue

About this model

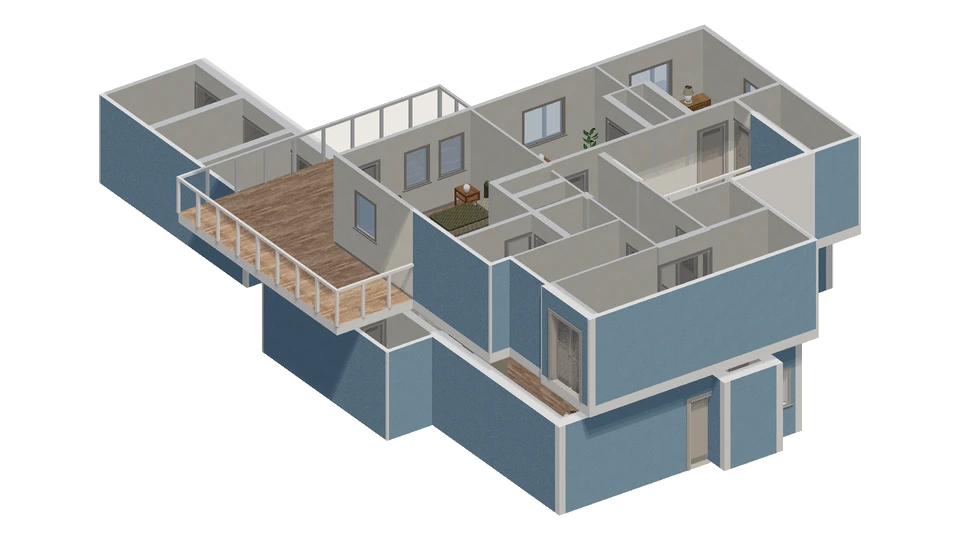

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
