Two-bedroom plan with a cross-plan connecting space

Published September 10, 2026

Measurements

All measurements are approximate.

Overall width: ≈ 7.7 m
Overall depth: ≈ 8.1 m
Model height: ≈ 3.0 m
Spaces: 8

Overall dimensions are maximum model spans. Model height is not a ceiling height. Modeled floor area is not a verified living-area measurement.

Each space

Space measurements will appear after the 3D model loads, when its floor geometry supports them.

Model notes

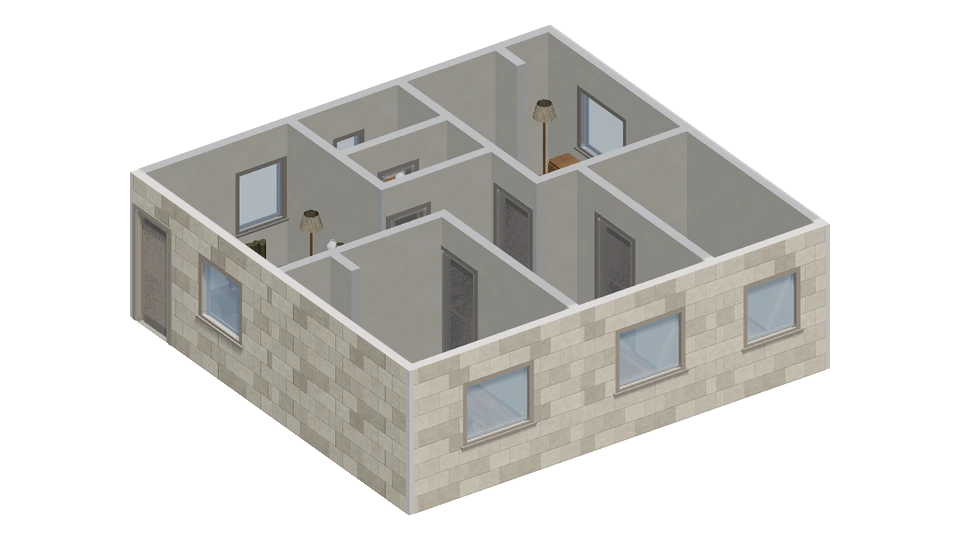

Two bedrooms occupy opposite corners, with the living room and enclosed kitchen in the other corners. An unlabeled room and a short connecting passage occupy the middle of the plan, alongside the bathroom and its small anteroom. Approximate reconstruction. Furniture and finishes are illustrative, not measured fit or evidence of existing conditions. Source: The ResPlan Authors, ResPlan plan 12359 (CC BY 4.0): https://github.com/m-agour/ResPlan . License: https://creativecommons.org/licenses/by/4.0/ . Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.

Finishes

Wall stone limestone

About this model

This 3D model was reconstructed by INK TO BRICK from a floor plan the creator uploaded. It is a conceptual model for exploring rooms, furniture and finishes, not a survey or construction document.
