Casa Desfase: one-bedroom cutaway with an offset room and bathroom notches

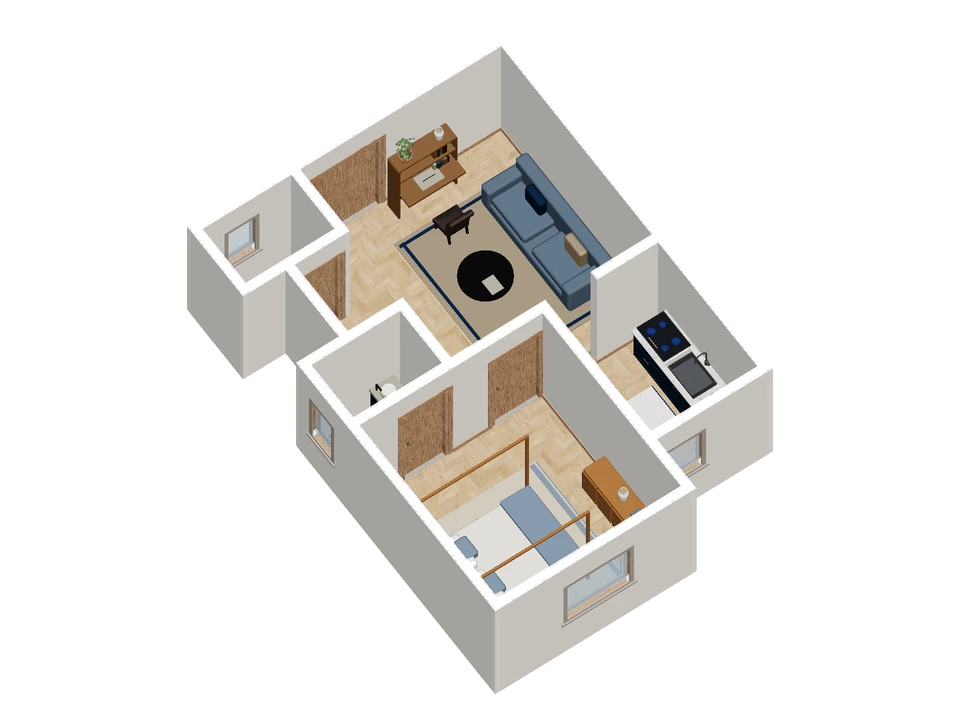

Casa Desfase is the editorial name for this study of ResPlan plan 264, reconstructed in 3D by Lodnor. The living area opens into a kitchen behind a short partition, while the bedroom projects beyond the kitchen edge. Two bathrooms sit in separate lower corners, divided by a recess in the footprint.

Offsets matter inside and outside

Casa Desfase shows several changes in alignment: the bedroom projects beyond the kitchen edge, and the lower bathrooms occupy separate corners around a recess. A short partition separates the kitchen approach from the living area. Keep these distinct offsets visible rather than simplifying the plan into a rectangle.

At approximately 8.32 × 5.94 m across its model bounds, this reconstruction gives a scale for comparing the room relationships. Multiplying those figures would describe a bounding rectangle rather than verified usable area, and the displayed furniture does not establish clearance.

A short partition creates a local turn

The living room opens toward the kitchen behind the short partition. Even a modest wall return can determine where a table or cart obstructs movement. Follow that turn while keeping the bedroom projection in view; its outline alone does not establish how much interior furniture space is available.

Preserve the recess without inventing an amenity

The recess between the lower bathrooms is part of the recorded footprint, not confirmation of a usable patio or balcony. For an interior proposal, focus on the kitchen return and bedroom approach. An attractive outdoor story would add unsupported provenance without solving either circulation question.

Compare alignment with movement

Locate the partition and projecting bedroom in the model, then sketch a table aligned first with the kitchen and then with the living-room seating. Trace the kitchen approach in each. Decide which alignment respects the turn, rather than choosing solely from the regularity of the furniture composition.

Use the partition turn as the common comparison point and keep the projecting bedroom visible, so a tidier furniture alignment does not hide a less useful route.

Source and scope of the study

Source drawing: plan 264, The ResPlan Authors, ResPlan. CC BY 4.0. 3D reconstruction by Lodnor. The project name is editorial, with no claim of ownership, location or completed construction. Geometry and vertical details are approximate; furniture and finishes are illustrative. This is not a survey or construction document. Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.
