Casa Doble Borde: open living side beside two bedroom-and-bathroom pairs

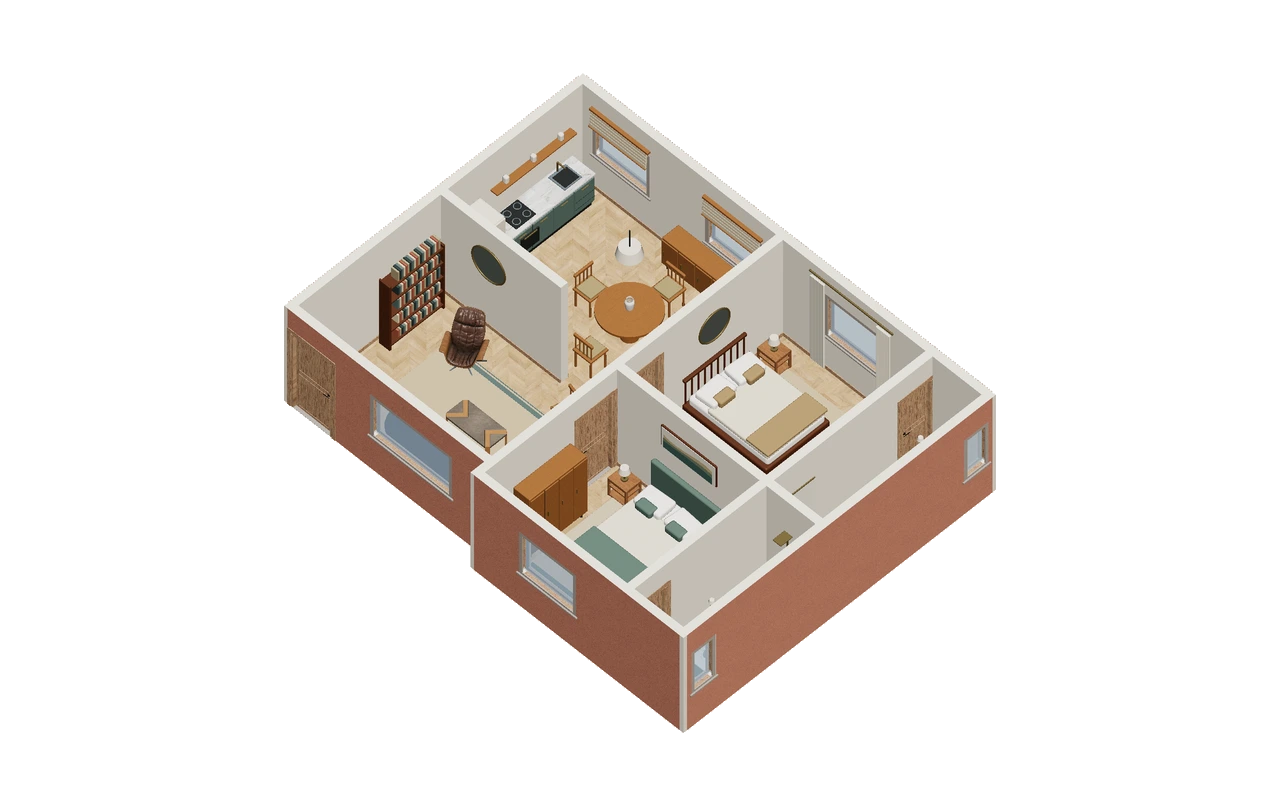

Casa Doble Borde is the editorial name for this study of ResPlan plan 16568, reconstructed in 3D by Lodnor. The kitchen and living area share one side, connected around a partial dividing wall. Two bedrooms line the other side, each with an adjoining bathroom in the narrow strip along the outer edge.

A shared side and a paired private side

Casa Doble Borde places kitchen and living activities on one side, opposite two bedrooms with adjoining bathrooms along the narrow outer strip. The repeated room pairs give the private side a clear rhythm. The public description establishes adjacency; inspect actual openings before inferring identical access for both pairs.

Its reported model bounds are about 10.26 × 7.71 m in width and depth. This is a useful orientation cue for the cutaway, not a measured statement about a property. Judge the arrangement first, then verify the particular dimensions a proposal depends on.

The partial wall creates the shared-side turn

Kitchen and living room connect around the partial wall’s end. Movement from this shared side toward bedrooms must be considered alongside that turn. A table that works well for serving food can still press into a bedroom approach, so read the entire width rather than only the kitchen connection.

Repeated bedrooms do not prove repeated furniture fit

The two bedroom-and-bathroom groupings are a useful basis for comparison, but not a reason to copy a furniture arrangement without checking each room. For the shared area, the partial wall can orient dining while the bedroom approaches remain clear. Keep both questions separate from decorative finishes.

Review both bedroom approaches with the table occupied

Locate the two bedroom openings and the partial wall’s end. Sketch a dining arrangement beside the kitchen, including a person seated on its bedroom-facing side. Trace an approach to each bedroom and compare a rotated table proposal to see which connection benefits from the change.

The occupied dining side nearest the bedrooms is the critical comparison, while the adjoining bathroom pairs should retain their actual door connections rather than assumed matching privacy.

Source and scope of the study

Source drawing: plan 16568, The ResPlan Authors, ResPlan. CC BY 4.0. 3D reconstruction by Lodnor. The project name is editorial, with no claim of ownership, location or completed construction. Geometry and vertical details are approximate; furniture and finishes are illustrative. This is not a survey or construction document. Furniture: Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB.
