Casa Esquina Retirada: Wide two-bedroom plan with a stepped kitchen corner
Wide two-bedroom plan with a stepped kitchen corner. A layout study from ResPlan 16920.
Casa Esquina Retirada is the editorial name for this two-bedroom layout study based on ResPlan 16920. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Esquina Retirada layout

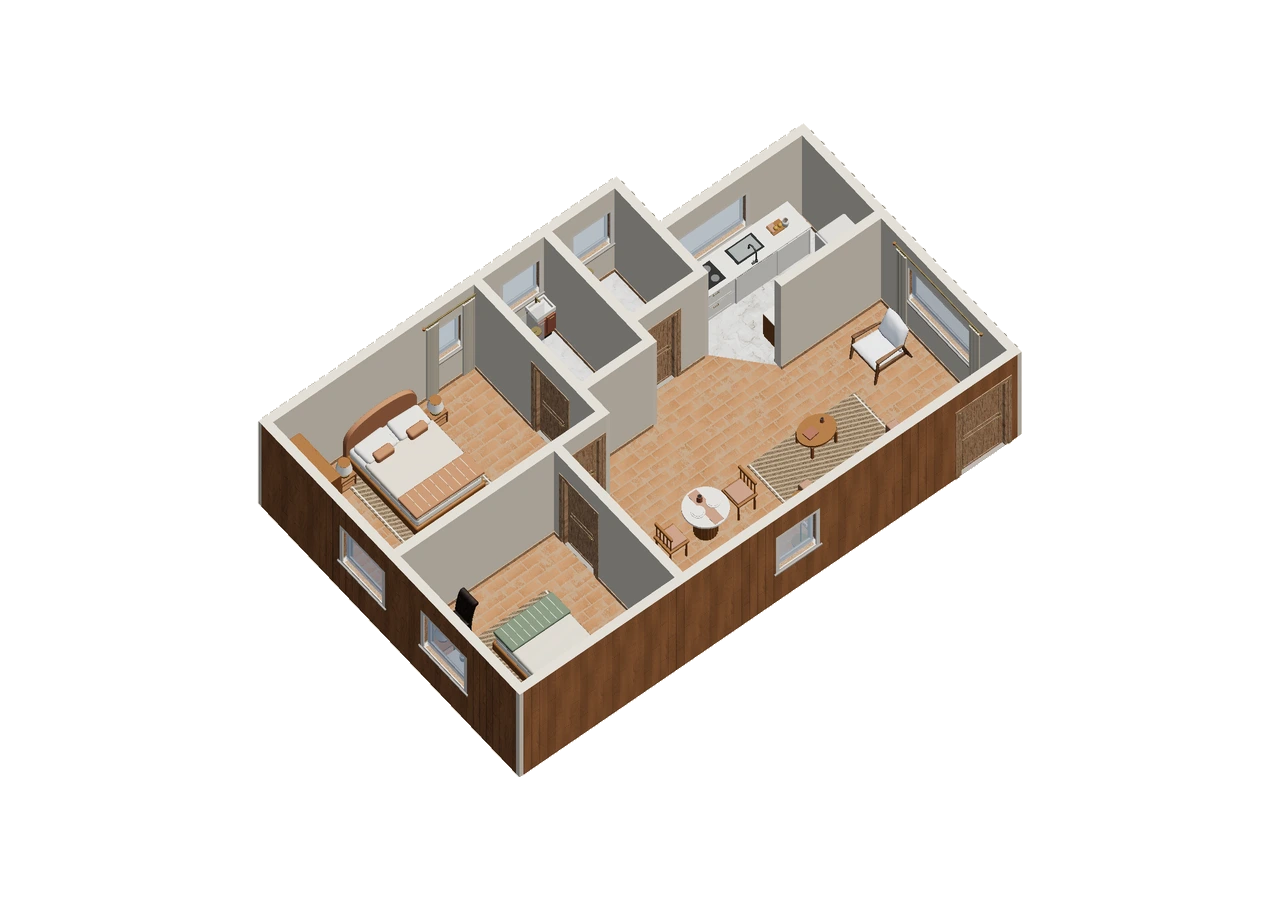

Two bedrooms line one side, with the wider upper room beside a pair of narrow bathrooms. The living area spreads across the lower and opposite side and opens toward a kitchen bay set back from the upper edge.
The public model reports an approximate overall envelope of 11.08 × 7.075 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Movement in Casa Esquina Retirada turns around the set-back kitchen corner rather than following one straight upper boundary. From the broad living area, locate the approach to that kitchen and then the bedroom-side connections. The upper bedroom is wider in the summary, but width alone does not determine bed placement once doorways and the neighboring bathroom pair enter the picture.
A furniture decision to compare
The open side gives room for more than one furniture orientation. Compare a seating group facing across the living area with one facing along its lower edge, using the kitchen corner as the circulation reference. Avoid letting the wide overall footprint suggest every local passage is generous: the paired narrow bathrooms deserve a closer, separate reading.
Review exercise: Casa Esquina Retirada
Pick one fixed point at the kitchen opening. Follow a trip from that point to each bedroom, then compare the same trips with the two seating orientations. Use an overhead view to keep the setback visible and a lower view to inspect the turn beside it. Note where the bathroom pair narrows your interpretation of the upper room group.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 16920. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
