Casa Eje Largo: Full-depth living room between two bedroom bays
Full-depth living room between two bedroom bays. A layout study from ResPlan 7718.
Casa Eje Largo is the editorial name for this two-bedroom layout study based on ResPlan 7718. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Eje Largo layout

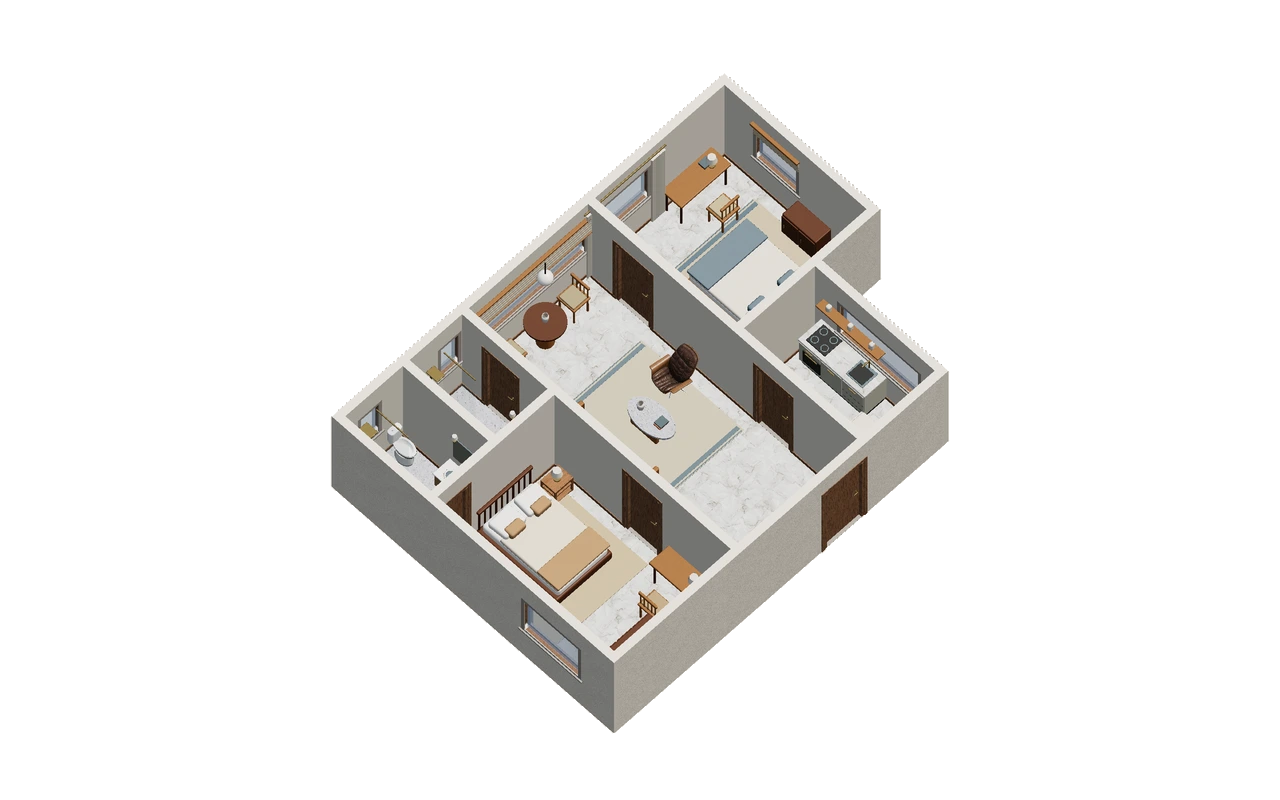

A long central living room separates two bedroom bays and connects to the kitchen at one end. Two bathrooms sit together above one bedroom, while the kitchen stops short of the other bedroom to form a step in the outline.
The public model reports an approximate overall envelope of 10.201 × 7.282 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Casa Eje Largo places movement along the depth of the living room rather than beside a separate long corridor. Follow the kitchen-to-bedroom paths from both ends: the bedroom bays lie on different sides, so seating can obstruct one approach while leaving the other apparently open. The paired bathrooms above one bedroom add an asymmetry worth retaining in every comparison.
A furniture decision to compare
A long room can be furnished across its width or as a sequence along its axis. Test the sequence here: a dining position nearer the kitchen and seating farther along, with a continuous walking side. The kitchen setback should stay legible at the end of the room; visually extending that bay would alter the reason the bedroom footprint projects beyond it.
Review exercise: Casa Eje Largo
Select a camera aligned with the living room’s long direction. Identify the kitchen end and both bedroom approaches, then compare two hypothetical sofa orientations. Trace the same kitchen-to-bedroom journeys in each. Turn to an overhead view to confirm that the paired bathroom group and the stepped kitchen edge remain correctly located in your reading.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 7718. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
Visible furniture or materials in the tour do not establish measured fit or existing conditions. Retain credits included in downloaded files when sharing the study. To apply an idea to another home, replace this approximate geometry with that home’s verified dimensions and door locations.
