Casa Ala Cocina: Projecting kitchen beside a two-bedroom rectangular core
Projecting kitchen beside a two-bedroom rectangular core. A layout study from ResPlan 961.
Casa Ala Cocina is the editorial name for this two-bedroom layout study based on ResPlan 961. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Ala Cocina layout

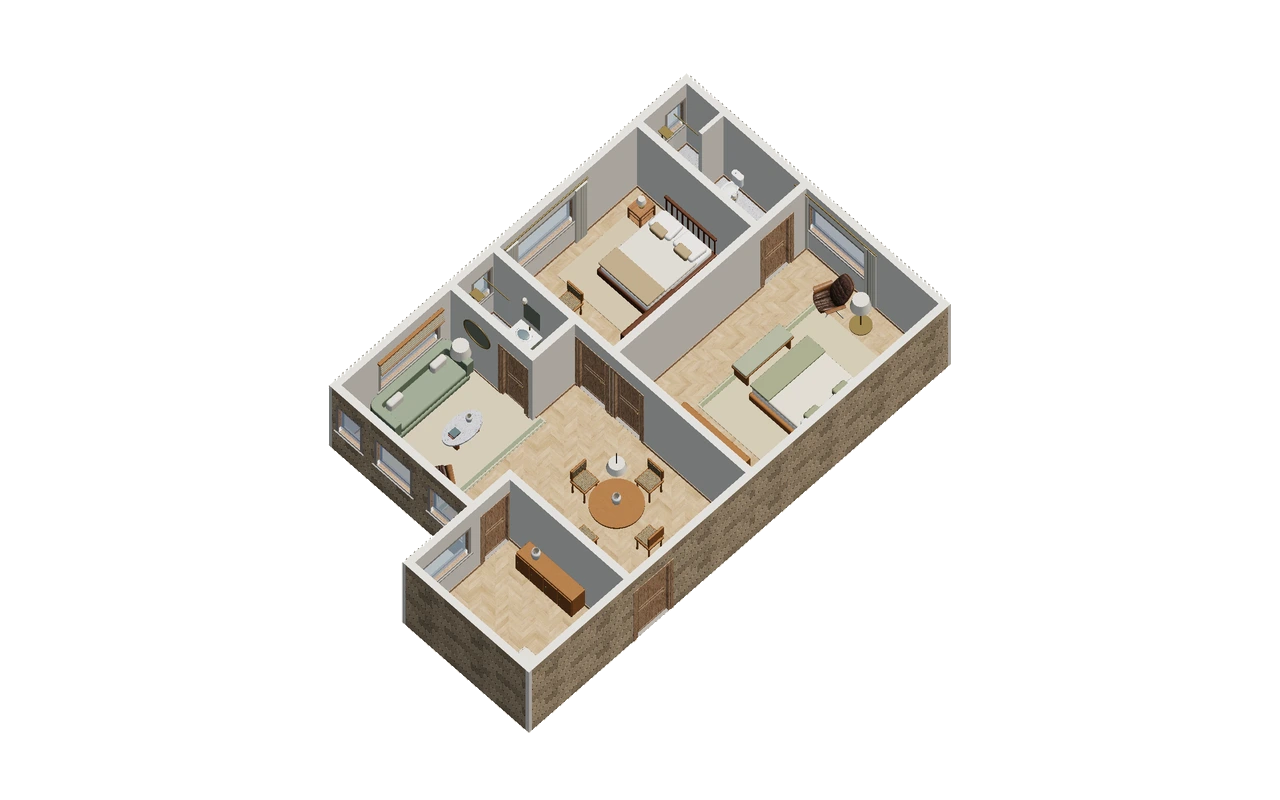

An enclosed kitchen projects from the side of the living area, opposite a pair of stacked bedrooms. Two narrow bathroom bays occupy the upper part of the main footprint, one opening from the living area and one from a bedroom.
The public model reports an approximate overall envelope of 12.878 × 7.994 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Unlike a kitchen contained within a straight room row, Casa Ala Cocina has a projecting working bay with its own approach. The living area connects that bay to the stacked bedroom side. The bathroom access is particularly important here: one comes from the living room, while the other comes from a bedroom. Those are two different privacy conditions, not interchangeable doors.
A furniture decision to compare
Keep the shared bathroom approach outside any seating enclosure you propose. The bedroom-accessed bathroom can be discussed as a different local relationship without assigning an owner or a principal bedroom. For dining, compare positions near the projecting kitchen door with positions farther into the main rectangle; the outer kitchen wing should not be flattened into the living-room outline.
Review exercise: Casa Ala Cocina
Trace a guest’s route from the living area to its bathroom and a bedroom user’s route to the other bathroom. Then trace kitchen-to-dining movement for two table positions. Keep all three routes visible in one overhead comparison. A table that shortens carrying distance but hides the shared bathroom approach should be reconsidered before evaluating its decorative appeal.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 961. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
