Casa Aliso: Tall two-bedroom plan with offset bathroom slots
Tall two-bedroom plan with offset bathroom slots. A layout study from ResPlan 2309.
Casa Aliso is the editorial name for this two-bedroom layout study based on ResPlan 2309. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Aliso layout

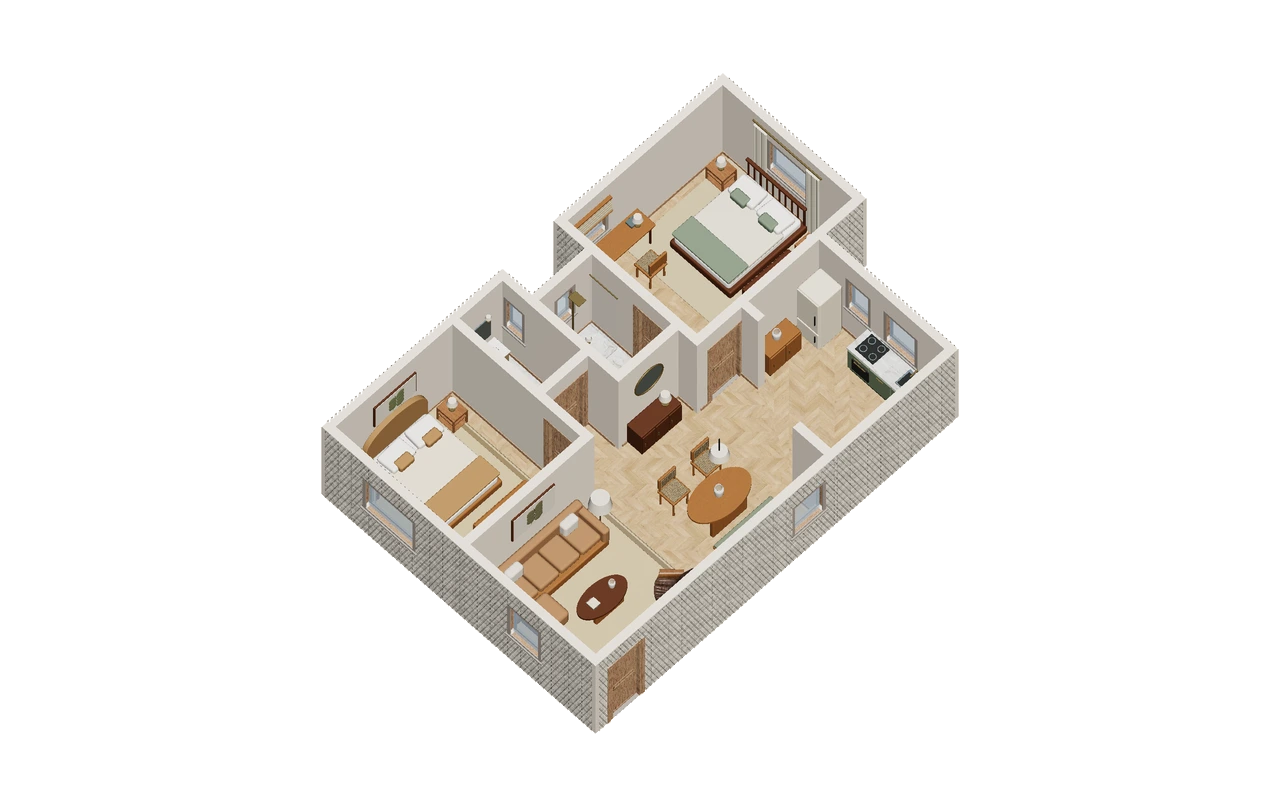

A long living area links the kitchen to two bedrooms along the opposite side. Two horizontal bathroom bays sit between the bedrooms, offset from one another, while the upper bedroom projects beyond the kitchen.
The public model reports an approximate overall envelope of 7.405 × 10.908 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
The long living area in Casa Aliso works beside a staggered private edge. Follow its length, then pause at each turn toward a bedroom or bathroom. The offset bathroom slots mean one straight furniture line may face different local depths as it progresses. A clear view down the room does not establish that every side approach is clear.
A furniture decision to compare
Read the bathroom offsets as a reason to compare short storage runs rather than one continuous deep unit. The upper bedroom projection also changes the relationship at the kitchen end. A dining arrangement near that end should be assessed against the actual setback and the route along the living room, while bedroom furniture should be considered within each distinct bay.
Review exercise: Casa Aliso
Walk the camera along the living-room axis and mark the two bathroom offsets in plan view. Place a hypothetical continuous storage footprint beside that edge, then replace it with two shorter pieces. Compare access to all four private destinations and the kitchen-side turn. The useful result is the location of conflicts, not a claim that either option fits a measured home.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 2309. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
