Casa Tres Bordes: Three-bedroom plan with a stepped kitchen corner
Three-bedroom plan with a stepped kitchen corner. A layout study from ResPlan 2066.
Casa Tres Bordes is the editorial name for this three-bedroom layout study based on ResPlan 2066. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Tres Bordes layout

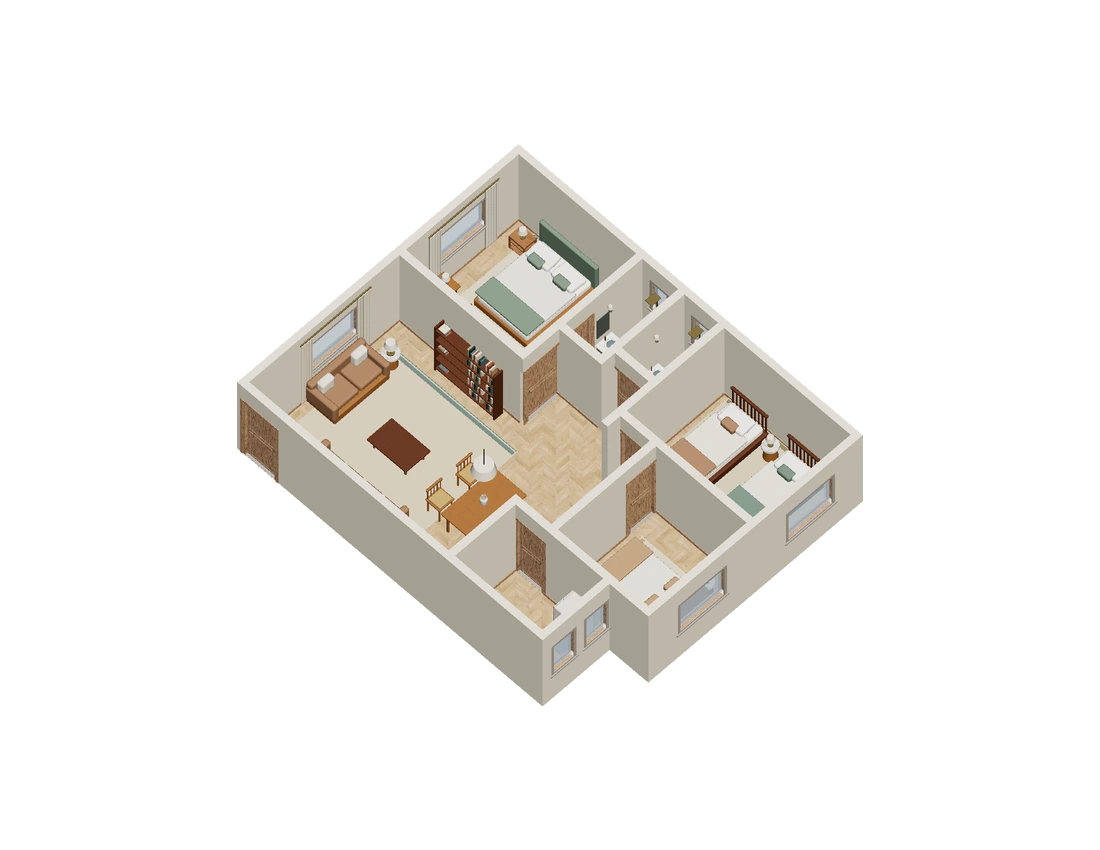

Three bedrooms line the upper and side edges around a broad living area. Two bathrooms sit together between the upper bedrooms, and an enclosed kitchen occupies a lower corner that stops short of the bedroom above it.
The public model reports an approximate overall envelope of 10.458 × 8.523 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Three bedroom destinations make the living area in Casa Tres Bordes a distributor, even though it remains the main shared room. Follow each bedroom route from the enclosed corner kitchen and compare where they overlap. The kitchen stops short of the room above it, so the stepped corner should stay visible instead of being described as one straight side wall.
A furniture decision to compare
The broad living floor offers a choice between one large seating group and a smaller group that leaves a clear distribution edge. Test the smaller arrangement first against all three bedroom approaches. Keep the paired bathrooms between upper bedrooms distinct from the kitchen corner; their grouping does not establish who uses them or whether any bedroom has exclusive access.
Review exercise: Casa Tres Bordes
Trace three kitchen-to-bedroom trips and mark their shared segment across the living area. Place a hypothetical large sofa group beside it, then reduce only the grouping’s depth while keeping its orientation. Compare the effect on each route, not just the nearest bedroom. End with a view that includes the kitchen setback and upper bathroom pair together.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 2066. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
