Casa Ámbar: Two-bedroom plan with a wide living room and side recess
Two-bedroom plan with a wide living room and side recess. A layout study from ResPlan 11277.
Casa Ámbar is the editorial name for this two-bedroom layout study based on ResPlan 11277. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Ámbar layout

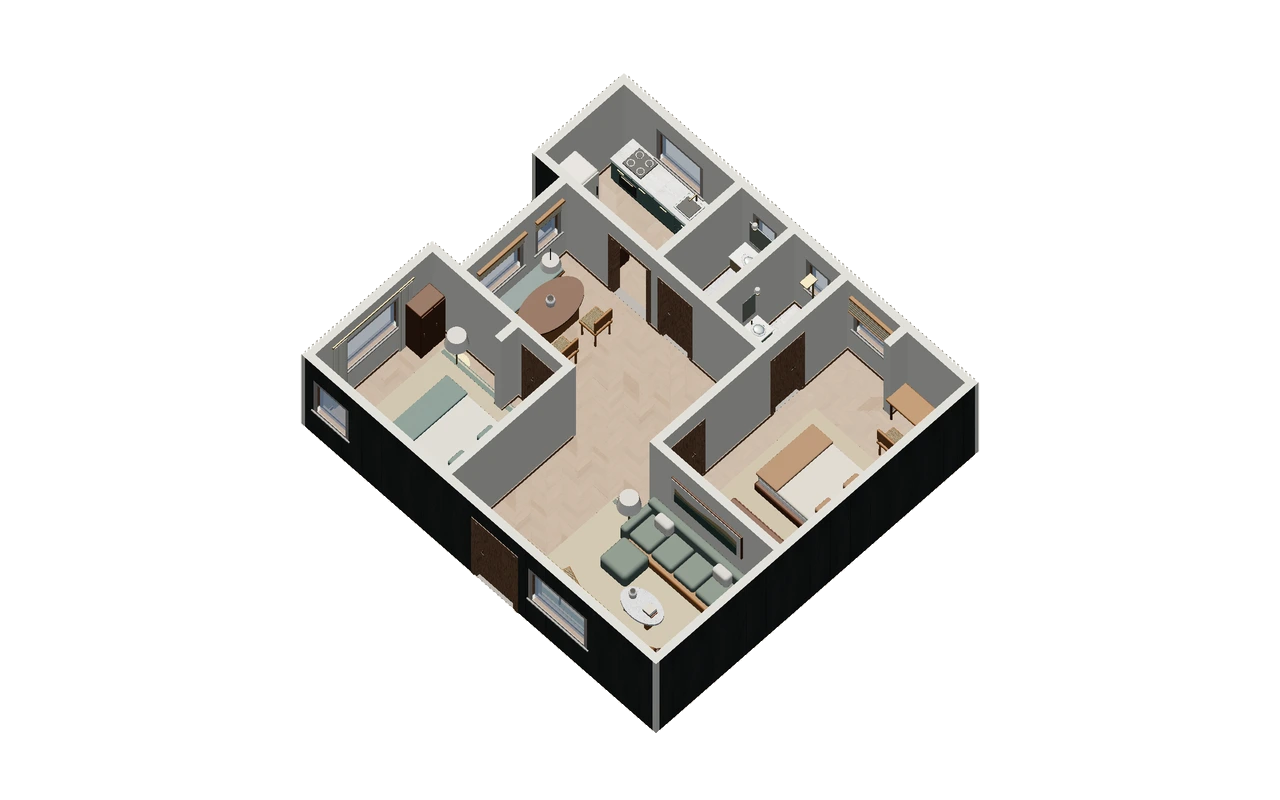

A broad living room extends into a central connecting area between the two bedrooms. Two bathrooms and the enclosed kitchen line the lower edge, while a recess separates the kitchen from the upper bedroom along the side.
The public model reports an approximate overall envelope of 9.377 × 8.512 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Casa Ámbar gives the living room a connecting extension between bedrooms. Distinguish that extension from the larger seating floor: it may be the part people repeatedly cross, even if it looks like extra room for furniture. The lower kitchen-and-bathroom row creates another set of destinations, while the side recess prevents a simple rectangular reading of the kitchen-to-bedroom edge.
A furniture decision to compare
Use the main living area for the deepest furniture and test lighter pieces near the connecting extension. This is a planning hypothesis, not a prescription from the source. Retaining the side recess is essential: otherwise an illustrated cabinet might appear to continue through a boundary that the public plan does not contain as usable indoor floor.
Review exercise: Casa Ámbar
Choose the central extension as the focus and trace living-to-each-bedroom trips through it. Add separate routes toward the enclosed kitchen and two bathrooms. Compare a deep chair inside the extension with one retained in the larger living floor. Keep the side recess visible, and distinguish a blocked indoor route from an exterior gap in the outline.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 11277. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
