Casa Centro Dentado: Two bedrooms and a kitchen around a notched living core
Two bedrooms and a kitchen around a notched living core. A layout study from ResPlan 8063.
Casa Centro Dentado is the editorial name for this two-bedroom layout study based on ResPlan 8063. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.
Reading the Casa Centro Dentado layout

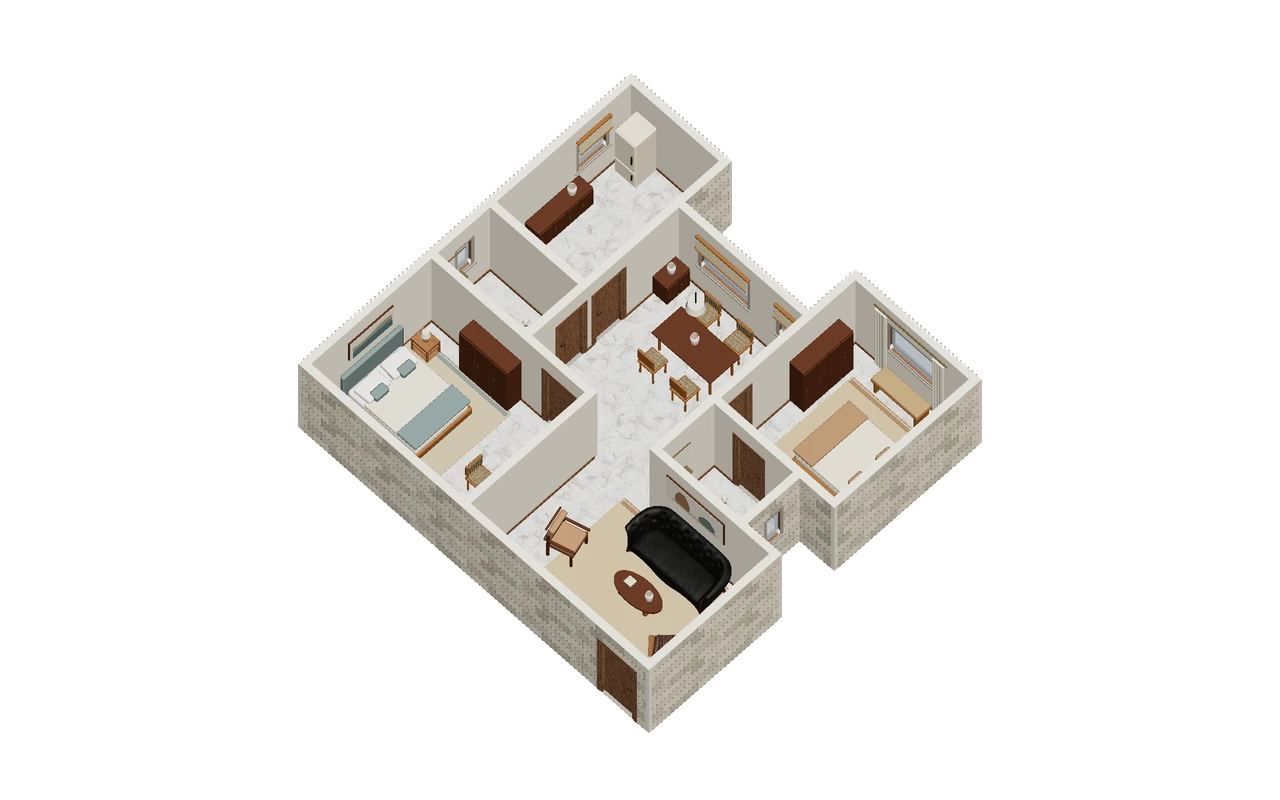

The living area turns between a kitchen and two bedrooms at opposite corners, reaching a recessed outer edge between the upper rooms. Horizontal bathroom bays sit below the kitchen and upper bedroom, with a second recess along the side.
The public model reports an approximate overall envelope of 10.184 × 9.659 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.
Loading the published model…
How the room routes connect
Casa Centro Dentado requires a turning route through its shared center. Two exterior recesses and bathroom bays interrupt the edges around it, so there is no single long wall that explains every trip. Follow kitchen-to-bedroom movement in both directions and distinguish an indoor junction from the outside notches. Empty space in the bounding outline is not automatically walkable floor.
A furniture decision to compare
Furniture should help identify the turning route rather than hide it. Compare a compact seating group held away from the notched edges with a more spread-out arrangement. The bathrooms beneath different upper rooms need individual access checks. Their shared horizontal orientation is a drawing relationship, not confirmation that their fixtures, services or door swings are equivalent.
Review exercise: Casa Centro Dentado
First outline only the indoor living floor, excluding both recesses. Trace kitchen-to-upper-bedroom and kitchen-to-opposite-bedroom trips within it. Compare compact and dispersed seating footprints, then inspect the bathroom destinations. If a route in your sketch crosses either exterior notch, correct the sketch before evaluating the furniture; otherwise the comparison gives space the plan does not provide.
Source and scope of this study
Source: The ResPlan Authors, ResPlan plan 8063. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.
The public release credits furniture by Eric Chadwick, ©2021 Wayfair, LLC, CC BY 4.0, modified for presentation. Full furniture and material credits are embedded in the GLB. Furniture sizes and finishes are illustrative; check real dimensions before purchasing.
