Casa Dos Entrantes: Three-bedroom layout with opposing central recesses

Casa Dos Entrantes is the editorial name for this three-bedroom layout study based on ResPlan 3268. The public tour offers a way to inspect room connections and boundaries; the name does not identify a built residence or commissioned renovation.

Reading the Casa Dos Entrantes layout

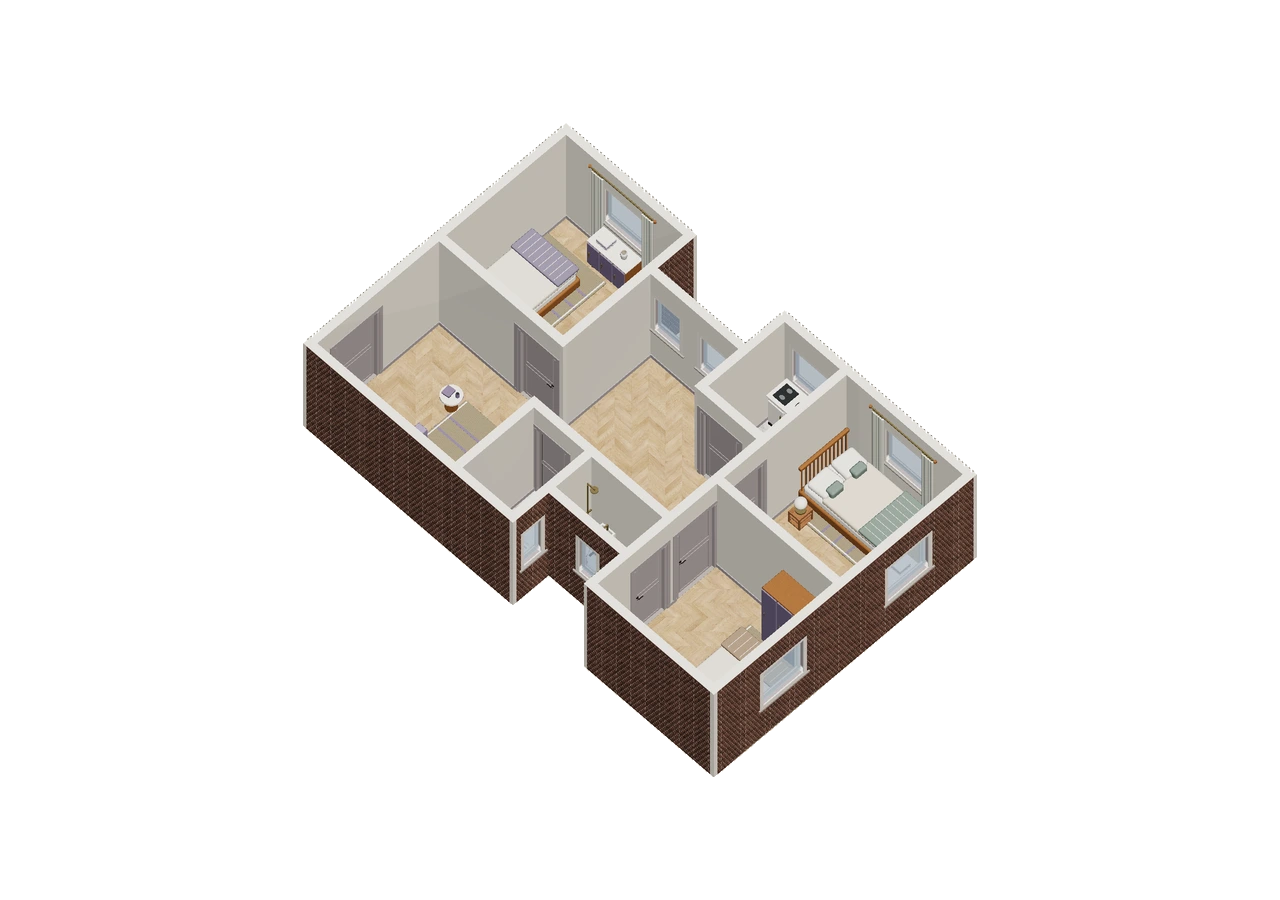

The living room opens into a central corridor between three bedrooms and an enclosed kitchen. A pair of differently oriented bathrooms sits beside the lower bedroom, with recesses in both the upper and lower edges of the plan.

The public model reports an approximate overall envelope of 9.998 × 6.271 m, with a modeled height of 3 m. These figures describe the reconstruction, not usable floor area, individual room dimensions or a verified building survey.

How the room routes connect

The central corridor in Casa Dos Entrantes must be read between two exterior notches. Follow the indoor connection from the living area to kitchen and bedroom doors; do not let the upper or lower gap become an imagined shortcut. The bathroom pair is differently oriented, so a single assumed approach or furniture clearance would miss the local geometry of at least one bay.

A furniture decision to compare

Treat the corridor as the fixed reference when testing living furniture. The opposed recesses make a regular rectangular furniture sketch particularly risky, because it can quietly add nonexistent floor. Near the lower bedroom, compare the two bathroom relationships separately. Their rotation is useful evidence about shape, but it does not tell you fixture placement, plumbing or private use.

Review exercise: Casa Dos Entrantes

Outline the corridor and exclude both exterior recesses in a plan-view sketch. Trace living-to-kitchen and living-to-three-bedroom trips inside that outline. Add one imagined shallow storage piece along a corridor edge, then inspect both bathroom approaches near the lower bedroom. Record whether an apparent conflict is caused by the storage or by a mistaken shortcut through a recess.

Source and scope of this study

Source: The ResPlan Authors, ResPlan plan 3268. Original ResPlan collection, licensed under Creative Commons Attribution 4.0. Lodnor reconstructed the plan in 3D. The editorial project name and furniture proposals in this article do not attribute new design intentions to the source authors.

Visible furniture or materials in the tour do not establish measured fit or existing conditions. Retain credits included in downloaded files when sharing the study. To apply an idea to another home, replace this approximate geometry with that home’s verified dimensions and door locations.
